iconsHigher yields / Safe & Reliable / Smart / User-friendly

DS-60/70/75K-G01P3-LV | 60-75kW | Three Phase | 8 MPPT | Low Voltage

iconsSmart Monitoring Platform

Remotely shutdown function

Thanks to the smart monitoring platform, MR Solar Energy Solutions full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

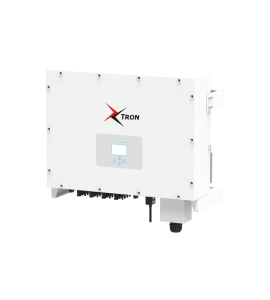

DS-607075K-G01P3-LV 60-75kW Three Phase 8 MPPT Low Voltage-2
DS-607075K-G01P3-LV 60-75kW Three Phase 8 MPPT Low Voltage-1
DS-607075K-G01P3-LV 60-75kW Three Phase 8 MPPT Low Voltage-3
DS-607075K-G01P3-LV 60-75kW Three Phase 8 MPPT Low Voltage-4
DS-607075K-G01P3-LV 60-75kW Three Phase 8 MPPT Low Voltage-5
  • 120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
  • 8 MPP trackers, Max. efficiency up to 98.8%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)

Technical Specifications

Model
DS-60K-G01P3-EU-AM8-LV
DS-70K-G01P3-EU-AM8-LV
DS-75K-G01P3-EU-AM8-LV
Input Side
Max. DC Input Power(kW)90105112.5
Max. DC Input Voltage (V)800
Start-up DC Input Voltage(V)250
MPPT Operating Range(V) 200~700
Max. DC Input Current(A)40+40+40+40+40+40+40+40
Max. Short Circuit Current (A)60+60+60+60+60+60+60+60
No.of MPP Trackers
8
No.of Strings per MPP Tracker
4+4+4+4+4+4+4+4
Output Side
Rated Output Power(kW)607075
Max. Active Power(kW)607075
Nominal Output Voltage / Range (V)
3L/N/PE 120V/208V, 127V/220V, 133V/230V 0.85Un-1.1Un (this may vary with grid standards)
Rated Grid Frequency (Hz)
60Hz/55Hz-65Hz, 50Hz/45Hz-55Hz
Operating PhaseThree phase
Rated AC Grid Output Current(A)
157.5/150.4
183.8/175.5
196.9/188
Max. AC Output Current(A)157.5/150.4
183.8/175.5
196.9/188
Output Power Factor
>0.99
Total Harmonics Current Distortion (THDi)
<3%
DC Injection Current(mA)<0.5%
Efficiency
Max.Efficiency98.8%
Euro Efficiency98.3%
MPPT Efficiency>99%
Protection
DC Reverse-Polarity ProtectionYes
AC Short Circuit ProtectionYes
AC Output Overcurrent ProtectionYes
Output Overvoltage ProtectionYes
Insulation Resistance ProtectionYes
Ground Fault MonitoringYes
Islanding ProtectionYes
Temperature ProtectionYes
Integrated DC SwitchYes
Remote software uploadYes
Remote change of operating parametersYes
Surge protectionDC Type II / AC Type II
General Data
Cabinet Size (WxHxD mm)
1006×516×325.5 (Excluding Connectors and Brackets)
Weight(kg)103
TopologyTransformerless
Internal Consumption<1W(Night)
Running Temperature
-25~60℃, >45℃ Derating
Ingress ProtectionIP65
Noise Emission(Typical)
≤65 dB
Cooling Concept
Smart cooling
Permissible Altitude (m)
4000
Designed Lifetime>20years
Grid Connection Standard
NBR 16149, NBR 16150, EN 50549, RD 140
Operating Surroundings Humidity0-100%
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
Display
LCD 240 × 160
Interface RS485/RS232/Wifi/LAN
